您当前的地位:首页 / 产品展示 / 锻钢球阀 / 美标两片式锻钢高压法兰球阀 Q41F-150LB~600LB 304 RF/MF衔接法兰
产品展示
产品详情

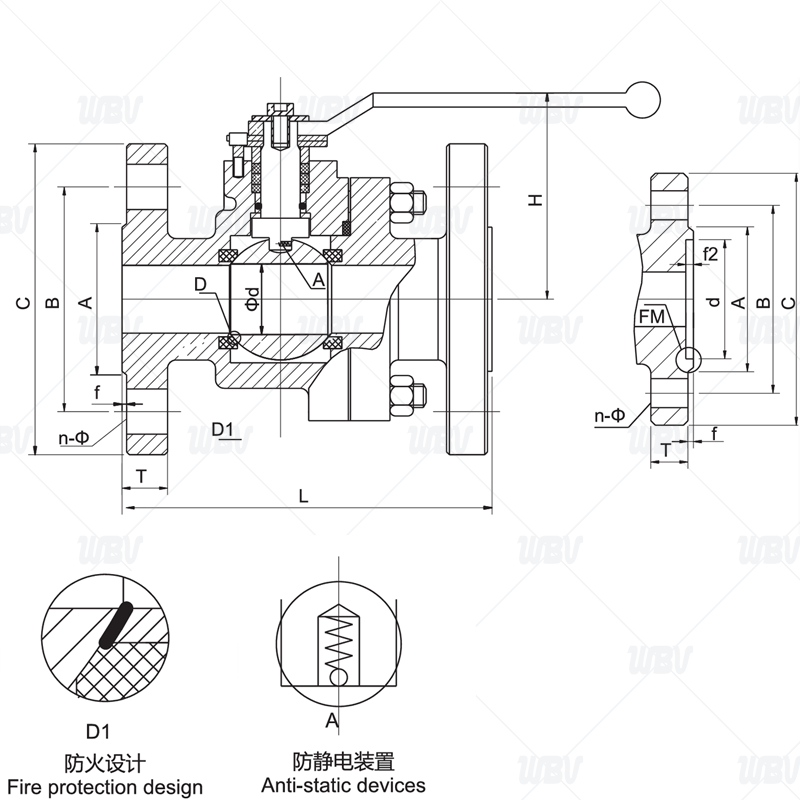

产品图纸
产品尺寸
| 150LB | ||||||||||
| NPS | L | ?d | C | B | A | N-? | T | f | H | W |
| 1/2" | 108 | 15 | 90 | 60.5 | 35 | 4-16 | 11.6 | 2 | 82 | 125 |
| 3/4" | 117 | 20 | 100 | 70 | 43 | 4-16 | 13.2 | 2 | 84 | 125 |
| 1" | 127 | 25 | 110 | 79.5 | 51 | 4-16 | 14.5 | 2 | 92 | 145 |
| 1 1/4" | 140 | 31 | 115 | 89 | 63.5 | 4-16 | 16 | 2 | 100 | 180 |
| 1 1/2" | 165 | 38 | 125 | 98.5 | 73 | 4-16 | 17.5 | 2 | 106 | 180 |
| 2" | 178 | 49 | 150 | 120.7 | 92 | 4-19 | 19.5 | 2 | 115 | 180 |
| 300LB | ||||||||||
| NPS | L | ?d | C | B | A | N-? | T | f | H | W |
| 1/2" | 140 | 15 | 95 | 66.5 | 35 | 4-16 | 14.7 | 2 | 82 | 125 |
| 3/4" | 152 | 20 | 115 | 82.5 | 43 | 4-19 | 16.3 | 2 | 84 | 125 |
| 1" | 165 | 25 | 125 | 89 | 51 | 4-19 | 17.9 | 2 | 92 | 145 |
| 1 1/4" | 178 | 31 | 135 | 98.5 | 63.5 | 4-19 | 19.5 | 2 | 100 | 180 |
| 1 1/2" | 190 | 38 | 155 | 114.5 | 73 | 4-22 | 21.1 | 2 | 106 | 180 |
| 2" | 216 | 49 | 165 | 127 | 92 | 8-19 | 22.7 | 2 | 115 | 180 |
| 600LB | ||||||||||
| NPS | L | ?d | C | B | A | N-? | T | f | H | W |
| 1/2" | 165 | 15 | 95 | 66.5 | 35 | 4-16 | 21.5 | 7 | 82 | 125 |
| 3/4" | 190 | 20 | 115 | 82.5 | 43 | 4-19 | 23 | 7 | 84 | 125 |
| 1" | 216 | 25 | 125 | 89 | 51 | 4-19 | 24.5 | 7 | 92 | 145 |
| 1 1/4" | 229 | 31 | 135 | 98.5 | 63.5 | 4-19 | 28 | 7 | 100 | 180 |
| 1 1/2" | 241 | 38 | 155 | 114.5 | 73 | 4-22 | 29.5 | 7 | 106 | 180 |
| 2" | 216 | 49 | 165 | 127 | 92 | 8-19 | 32 | 7 | 115 | 180 |
技术资料
1.执行尺度API608
2.结构长度尺度ANSI B16.10
3.端面尺寸尺度B16.5
4.测试尺度API598
产品零件表
| 序号 | 名称 | 材质 | 序号 | 名称 | 材质 |
| 1 | 阀体 | F304 | 10 | 填料箱 | F304 |
| 2 | 阀盖 | F304 | 11 | 填料 | 石墨+钢丝 |
| 3 | 螺栓 | A193 B16 | 12 | 内六角螺钉 | A193 B8 |
| 4 | 螺母 | A194 7 | 13 | 压盖 | CF8 |
| 5 | 中路垫片 | 304+PTFE | 14 | 内六角螺钉 | A193 B8 |
| 6 | 密封圈 | RPTFE | 15 | 定位片 | CF8 |
| 7 | 球 | F304 | 16 | 卡簧 | CF8 |
| 8 | 阀杆 | F304 | 17 | 防静电 | 弹簧+钢珠 |
| 9 | O型圈 | 氟橡胶FKM | 18 | 手柄 | WCB |
